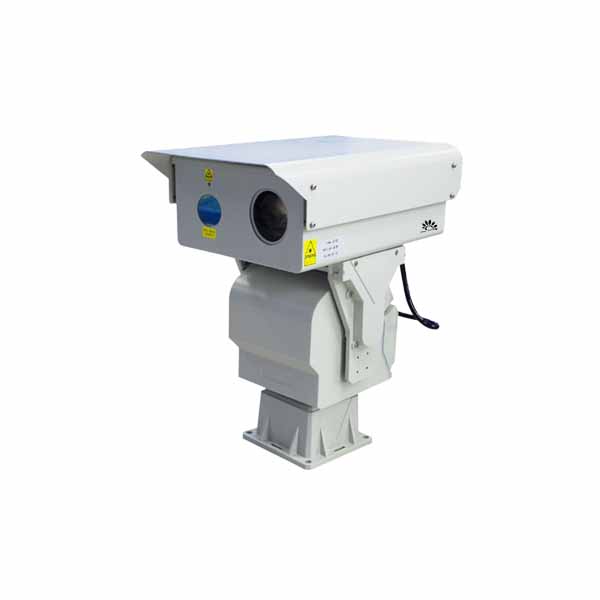

Long Distance HD Laser Camera

High-definition laser camera uses a super-homogenized infrared laser as the illumination source and a 2-megapixel low-light telephoto camera with a night vision .It can be used in various long-distance day and night continuous monitoring fields. The product integrates star-level high-definition visible light imaging technology, AI intelligent analysis technology, and laser lighting technology. It has the characteristics of wide application, flexible deployment, high degree of intelligence, and strong environmental adaptability.

specification：

The laser camera adopts full HD color black and white dual-mode back-illuminated ultra-low illumination CMOS sensor, small day and night high-definition lens and high-power flood laser illuminator. delicate features. The split design is adopted, the horizontal 360° continuous rotation, the monitoring range is wide and the coverage rate is high. The shell of the equipment is made of super-strong aluminum alloy, which can reach IP66 protection level; the surface is made of PTA three-proof coating, which has strong corrosion resistance; it ensures the long-term stable operation of the product in harsh environments such as sand, dust and salt spray.

The product is embedded with an AI intelligent video analysis block module, which supports a variety of recognition algorithms and behavior analysis algorithms. With advanced intelligent image processing algorithms, it is easy to identify the shape features and behavioral states of monitored objects in different environments.

The product replaces the human eye with a laser camera, and replaces the human brain with an intelligent algorithm and deep learning. It integrates detection and analysis, and has a high degree of automation. The configuration is simple, the setting is convenient and quick, the labor cost and time cost of manual patrol are greatly saved, and the work efficiency is improved.

Features:

1)  high-power laser, long distance for fill light;

2) 0.5°～20°DSS digital step-following variable-angle laser illuminator, distance matching algorithm between laser and camera magnification;

3) GHT-II super-homogenization high-definition lighting technology, 0.01°SLM optical axis self-locking alignment;

4) Independent photosensitive control to ensure accurate synchronization of the camera's color-to-black and laser switch;

5) Support electric adjustment and alignment;

6) Using heavy-duty CNC pan/tilt, 360° continuous rotation observation, no dead angle, stable operation and small image jitter;

7) Support intelligent functions such as out-of-bounds/intrusion detection, target tracking, etc. to realize unattended duty;

8) Built-in GPU chip, supports deep learning algorithms, supports a variety of behavior analysis algorithms and target detection algorithms, and effectively improves the detection accuracy;

9) Built-in tracking module, support target tracking, and continuously monitor illegal targets in full time domain and airspace;

10) The whole machine adopts super-strong aluminum alloy shell, IP66 protection, rain-proof, dust-proof, and can adapt to various harsh environments.

Application scenarios:

Widely used in long-distance day and night monitoring scenarios such as rivers, lakes, reservoirs, ports, docks, marine ranches, oil fields, urban high points, cultural relics protection, highways, and railways.

Detail Specification DOWNLOAD

Long Distance HD Laser Camera .pdf
