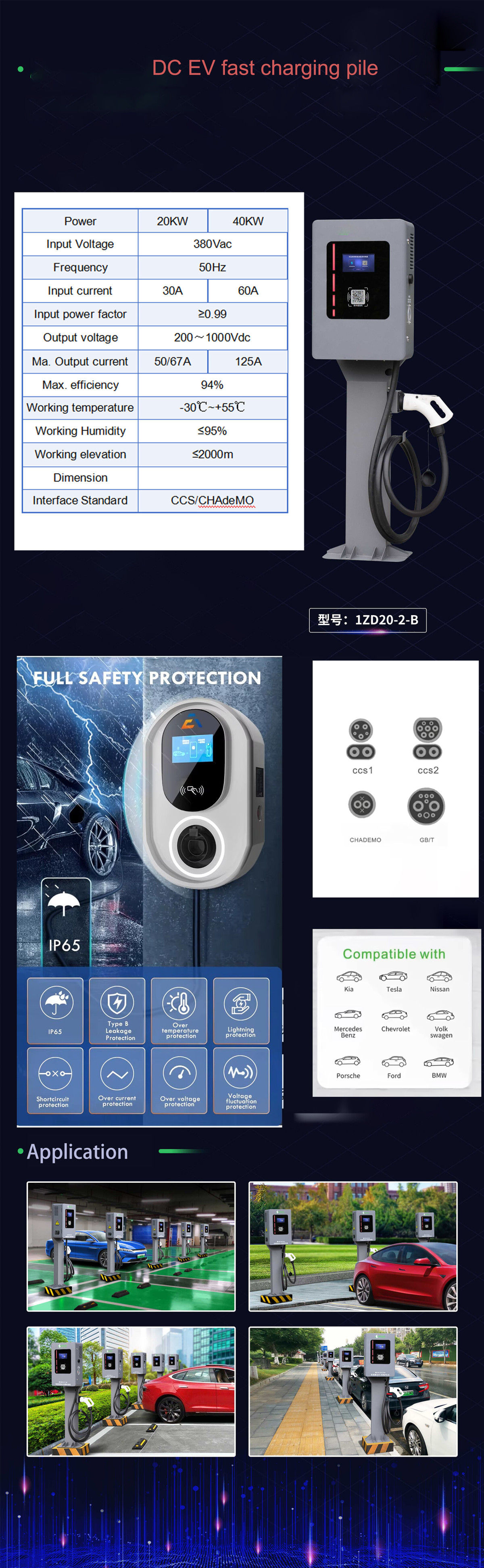

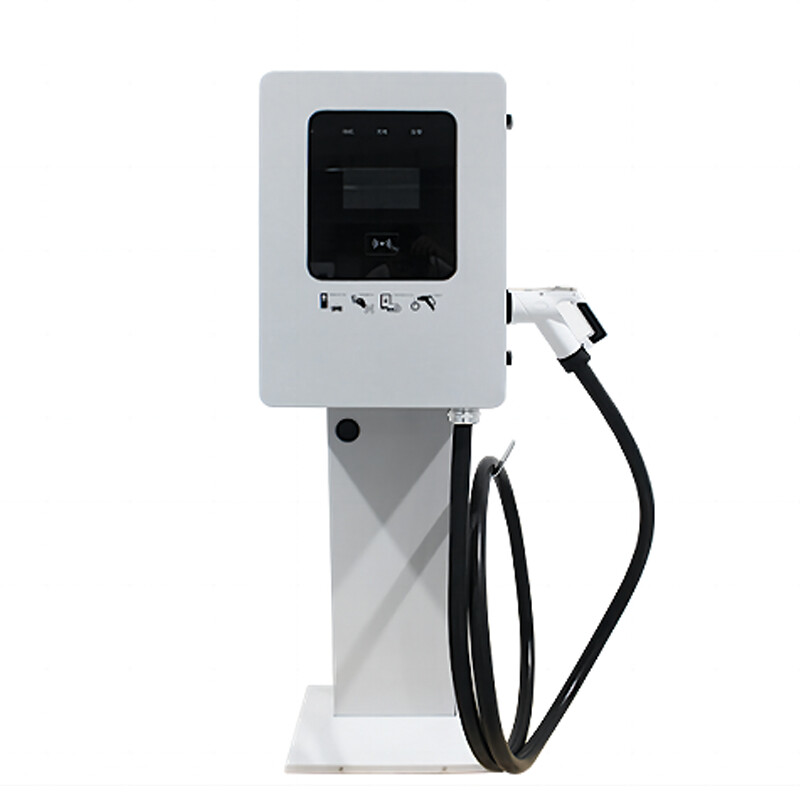

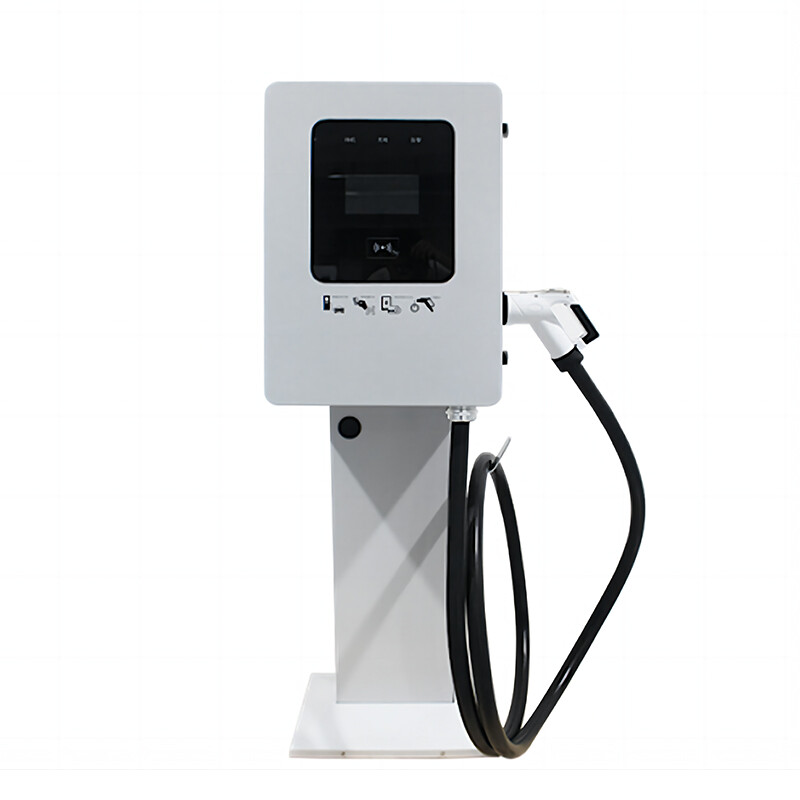

DC charging Pile

DC Charging Station (DC Charging Station) is a charging device designed specifically for electric vehicles (EVs) to provide direct current (DC) directly to the EV's power battery. Unlike AC Charging Stations, DC Charging Stations do not rely on the vehicle's on-board charger to convert the current, but instead convert AC power from the grid to DC power directly inside the charging station, and then deliver it to the vehicle's battery as DC, which greatly improves charging efficiency and speed.

Working Principle

DC charging pile receives alternating current (AC) from the grid, converts it to direct current (DC) via the built-in inverter, and then delivers the DC power directly to the battery of the electric vehicle. During this process, data is exchanged between the charging pile and the electric vehicle via a charging communication protocol to determine charging parameters such as charging current, voltage and charging status.

Features：

l High-speed charging: DC charging posts charge much faster than AC charging posts, and can typically charge an electric vehicle to 80% of its capacity in 30 minutes to an hour, depending on the vehicle's battery capacity and the maximum power of the charging post.

l High cost: DC chargers are relatively expensive to manufacture and install because they contain complex power conversion and control equipment.

l Standardised charging interfaces: To ensure compatibility, DC charging posts use internationally accepted charging interface standards such as CCS (Combined Charging System), CHAdeMO and Tesla's dedicated charging interface.

l Intelligent management: Modern DC charging piles are usually equipped with intelligent management functions, such as remote monitoring, fault diagnosis, and payment system integration, to improve charging efficiency and user experience.

Future Directions

DC charging post technology is evolving towards higher power, shorter charging time and wider compatibility. With the advancement of EV battery technology and the growth of charging demand, future DC charging piles may support higher charging power, adopt more advanced thermal management technology (e.g., liquid cooling system) to ensure safety and efficiency during charging, and at the same time, intelligence and networking will become important features of DC charging piles to meet the growing demand for EV charging and optimise charging station operation efficiency.
