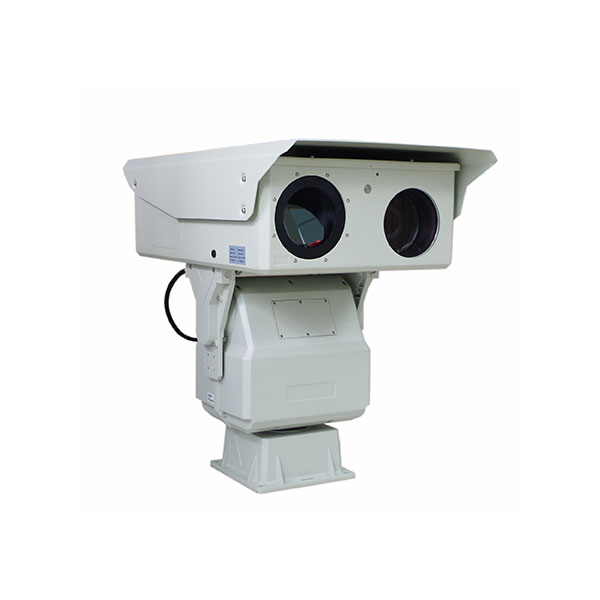

Intelligent Multi-band Dual HD Thermal Camera

Intelligent multi-band camera is based on the latest sixth-generation uncooled infrared technology and high-definition visible light imaging technology, which is specially designed and developed for the remote day and night monitoring field. Infrared thermal imaging adopts ultra-fine resolution uncooled focal plane imaging detector with high sensitivity of 1280×1024, and miniaturized infrared lens designed by AS+DOE continuous zoom optical technology. Advanced digital circuit and image processing algorithm can provide delicate Smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and telephoto compact continuous zoom lens. The omnidirectional pan/tilt can realize search and observation. The internal industrial-grade embedded control electronic system realizes the zoom, focus, mode switching, and high stability control of the pan/tilt pitch/rotation of the camera. The overall shell is made of super-strong aluminum alloy and reaches the IP66 protection level, ensuring that the equipment is used in harsh outdoor environments. medium and long-term operation.

The multi-band camera can be equipped with a super-homogenized near-infrared laser as an illumination source, and with a high-definition low-illumination camera, it can observe the details of the target found by the thermal image at night, and is suitable for the monitoring of long-distance targets under all-weather conditions. It can also be equipped with sensor accessories such as laser ranging and Beidou/GPS, which can obtain precise positioning information of long-distance targets and scenes, forming a long-distance monitoring device with multi-functional situational awareness.

 Multi-band cameras can also cooperate with the special DF3000 key area defense platform software, which can realize regional intrusion detection, cross-border intrusion detection, multi-scene group cruise detection, 3D frame selection zoom/positioning, automatic target tracking, panoramic stitching, radar linkage and other intelligent function to realize automatic unattended operation.

Specification：

1) Full-time, all-weather work: using intelligent thermal imaging, high-definition visible light, and laser night vision multi-mode composite detection methods, multiple methods complement each other's advantages, to achieve full-time, all-weather, large-scale target fast search and close-range detailed observation

2) Based on the latest generation VOx detector based on MEMS technology, the picture is delicate and less affected by fog, rain and snow; the unique AS+DOE advanced optical continuous zoom and 3CAM high-precision optomechanical design, the zoom is smooth and stable, which is conducive to large-scale search and long-distance identify;

3) Visible light is based on full HD color/black and white dual-mode low-illumination CMOS sensor design, compact telephoto continuous zoom lens, small size and light weight; optical and electronic dual fog penetration, heat wave drift suppression, and better imaging effect;

4) Using heavy-duty CNC PTZ, 360° continuous rotation observation, no dead angle, stable operation, small image jitter, adaptive focal length and rotation speed, and accurate target positioning;

5) Highly intelligent: support hot-spot alarm, fireworks alarm, temperature detection; support regional intrusion detection; support vehicle, ship, human, animal detection, classification, and identification; support target tracking, screening and filtering; support AR intelligent information fusion linkage

6) Self-diagnosis and self-recovery: support life-cycle management, fault self-checking, front-end storage, network resuming, power-off memory, remote restart/upgrade, strong light protection, sun burn prevention, multi-configuration scene mode, large Improve the user experience and reduce the cost of use;

7) Based on IP full network design, one network cable can realize the interactive transmission of all video, alarm data, and positioning data, and the system networking and implementation are simple;

8) The whole machine adopts super-strong aluminum alloy shell, IP66 protection, rain-proof, dust-proof, and can adapt to various harsh environments;

9) It can expand sensors such as laser ranging and Beidou/GPS to form a long-distance monitoring device for multi-functional situational awareness.

Application scenarios:

Mainly used in port, river, lake monitoring, key material monitoring, airport monitoring, oil field, oil depot security, forest, grassland, coal mine, granary and other fire monitoring, ecological and environmental monitoring, urban high-altitude observation, anti-drone application, highway , Monitoring along the railway.

Specification DOWNLOAD

Dual sensor intelligent ca

TTVC12110C-2150.pdf

TTVC12615C-2186.pdf

TTVC121023C-2186.pdf

TTVC121030C-2186.pdf
